README.md
Nucleo-F303RE

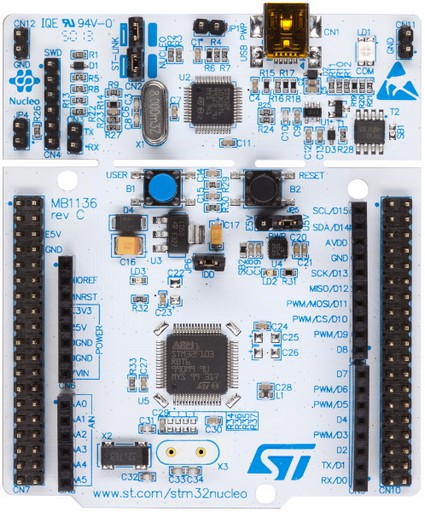

DigitalAudio485 prototype with STM32 Nucleo-F303RE board
Initial state: STM32 Nucleo-F303RE board with factory settings
Board modification
HSE oscillator from X3 crystal
P.25 OSC clock supply
- SB54 and SB55 OFF
- R35 and R37 soldered
- X3 crystal (8 MHz) soldered
- C33 and C34 soldered with 22 pF capacitors
- SB16 and SB50 OFF (MCO)
Disable OSC 32kHz
P.26 LSE not used
- SB48 and SB49 ON
- R34 and R36 removed
USB-Serial to UART5
P.26 USART communication
- SB62 and SB63 must be ON
- SB13 and SB14 must be OFF
